ALUSTEP 500

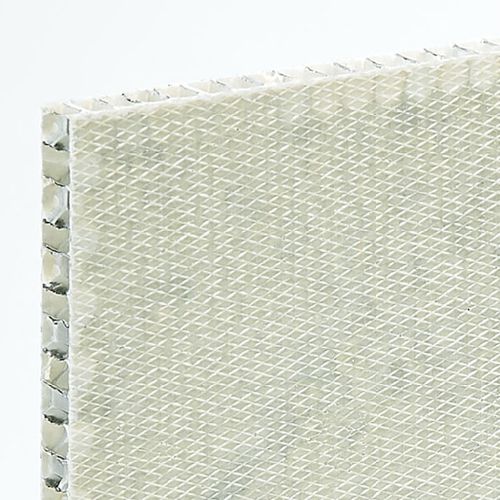

ALUSTEP® 500 is a sandwich panel with a core in aluminum honeycomb faced with fibreglass impregnated with epoxy resin. The application of ALUSTEP SERIES’ panels permits huge savings as far as weight and thickness of slabs of natural stones, such as marbles and granite and mosaics are concerned. With the reduction of material and weight, material, logistics and installation costs can be significantly reduced.
A - SKINS IN BIDIRECTIONAL GLASS FIBRE FABRIC
500 g/m2 impregnated with epoxy resin
B - CORE Aluminium honeycomb
(Alloy series 3000*) with hexagonal cells
Diameter: Ø1/4”, Ø3/8”,**
Thickness Foil: from 50 to 70 microns
Thickness starting from 4 mm to 80 mm
* To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104
