Квадратный зонт от солнца CYGNUS QADRO

с навесомиз акриладля алюминия

Product overview

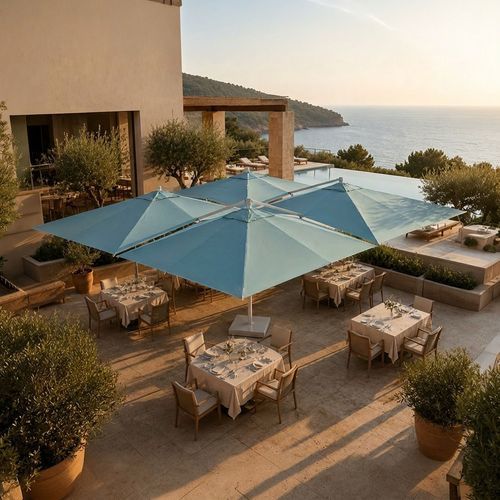

Cygnus Qadro is the cantilever parasol with four cross-shaped canopies that shades an entire space without a single pole among guests. Ideal for resort lunch service, club event nights and luxury restaurant terraces.

Key features

• Four independent gas pistons: each arm opens and closes on its own.
• No pole among the tables: 36 m² coverage arranged on a single central pole (cross layout).
• Acrishade solution-dyed acrylic fabric 260 g/m²: UPF 50+ (blocks ~98% of UV rays), water-repellent, integrated top airvent on each panel.
• Reinforced stitching at tension points and perimeter Velcro closure to keep panels secured when closed.
• Commercial-grade aluminium frame with reinforced central upright (square section).
• 360° rotation of the whole cross via a lever; quick manual opening/closing of panels with gas-piston assistance.

Options / available variants

• Available size: 6×6 m (single configuration on this product page).
• Colour / finish examples: Matt Anodizing / White (RAL 9012) — Matt Anodizing / Glacier (RAL 6027) — Anthracite (RAL 7024) / Vellum (RAL 1015) — Anthracite (RAL 7024) / Graphite (RAL 7037).

Ideal applications
Designed for large hospitality venues: restaurants, terraces, resorts, clubs and events where uninterrupted shaded space is required without poles between tables.

Mechanism & operation
Each of the four arms is assisted by its own gas piston allowing single-handed, rapid opening and closing of each canopy independently. The central cross assembly rotates 360° with a lever to orient shade as needed.

Notes on fabric & performance
Acrishade 260 g/m² is solution-dyed acrylic (water-repellent), rated UPF 50+ (blocks approximately 98% of UV). Each panel includes a top airvent (single opening, without flap) to relieve wind pressure and reduce the risk of uplift.

Caractéristiques / spécifications techniques

• Denomination commerciale: Cygnus Qadro
• Available size: 6×6 m (total coverage 36 m²; 4 panels of 9 m² each)
• Coverage width: 600 × 600 cm
• Opening: Push-open one-stop, gas-piston assisted, independent for each of the 4 arms
• Fabric: Acrishade 260 g/m² — solution-dyed acrylic, UPF 50+, water-repellent, single top airvent per panel, perimeter Velcro closure
• Frame material: Commercial-grade aluminium
• Ribs: 16 × 28 × 1.2 mm (8 ribs per panel — 32 ribs total)
• Central pole (upright): Square section 110 × 110 mm (designed for four cantilevered arms)
• Total height (open): 260 cm
• Usable headroom beneath panels: 210 cm
• Height (closed): 50 cm
• Net weight (product): 83.8 kg
• Gross weight (packaging): 102.2 kg
• Packaging: 5 parcels — 1 pole (295 × 17 × 17 cm) + 4 umbrella heads (242 × 29 × 17 cm each); total volume ~0.56 m³
• Wind resistance: Up to 25 km/h (minimum recommended base: 100 kg ballast or fixed anchoring)
• Recommended anchoring / bases (not included): concrete anchor plate, timber floor anchor plate, in-ground anchor plate or equivalent fixed anchoring / 100 kg distributed ballast
• Warranty: 7 years on frame · 3 years on fabric
• Reference / product code (variant shown): 6304006
• Price (tax excl.): 3848.360656 (EUR)
