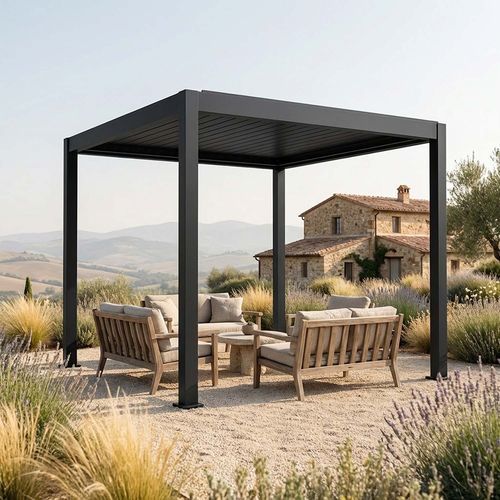

Пергола для крепления анкерами LYRA T6

самонесущаяиз крашеного алюминияалюминий

Short description
Lyra T6 is a bioclimatic pergola with adjustable louvres from 0° to 100°, locked securely in any position. Its T6 ArmorAlloy™ structure is made from aerospace-grade 6063-T6 aluminium and is INTERTEK EN 13659 certified (tested to withstand winds up to 143 km/h and snow loads up to 160 kg/m²). Available in five standard sizes (9–24 m²) and supplied with a set of included accessories and electronics.

Main features included

• T6 ArmorAlloy™ structure: 6063-T6 aluminium (aerospace-grade), heat treated for increased tensile strength.
• INTERTEK certification: tested at 143 km/h wind for one hour and 160 kg/m² snow load with no structural deformation.
• Solar rain sensor (DropSense™ Solar): included; solar-powered with ~6 months autonomy, 80 m wireless range, full-metal corrosion‑resistant housing.
• SealDrive™ IP67 motor: DC 24V / 30W motor integrated in profile, IP67 rated, certified failure rate <0.025% over 10,000 units.
• DuoGlow™ perimeter LED lighting: integrated bi-colour LED (3000K for ambience, 6000K for function), CRI 90, IP67, included in the price.
• Controls & connectivity: 868 MHz remote control (868.35 MHz) and Tuya Smart app support; smart home compatibility (Google Home, Alexa, HomeKit via bridge).
• Colours & finishes: UV-resistant powder coating; available in Matt Grey (RAL7016) and Matt White (RAL9016).
• Sizes: standard formats 3×3 m, 3×4 m, 4×4 m, 3×6 m, 4×6 m (covers 9–24 m²).

Six exclusive technologies

• T6 ArmorAlloy™ — heat-treated 6063-T6 aluminium: stronger profile, designed for long-term structural performance.
• DualChannel™ Post — exclusive double-channel pole: separate channels for electrical cables and water drainage (no external ducts).
• GripBolt™ M8 — M8 bolt-lock system: anti-loosening fasteners requiring no re-tightening over the product lifespan.
• SealDrive™ IP67 — submersible motor technology: motor and drive certified for immersion protection, integrated into the structure.
• DuoGlow™ CRI 90 — integrated bicolour LEDs (3000K + 6000K) with high colour rendering (CRI 90) included as standard.
• DropSense™ Solar — solar rain sensor that detects first drops and closes louvres automatically (~20 s), with long autonomy and wide wireless range.

Caractéristiques / spécifications techniques

• Available sizes: 3×3 m, 3×4 m, 4×4 m, 3×6 m, 4×6 m.
• Structure material: aluminium 6063-T6 (T6 ArmorAlloy™).
• Colours: Matt Grey (RAL7016), Matt White (RAL9016) with UV-resistant powder coating.
• Louvre rotation: 0° – 100° (motorised, stops at any intermediate position).
• Wind resistance: 133 km/h in operation, 143 km/h tested by INTERTEK (EN 13659 report).
• Snow load: 110 kg/m² in operation, 160 kg/m² tested by INTERTEK.
• Power supply: 100–240 VAC 50/60 Hz (mains connection to transformer inside pole).
• Motor: DC 24V / 30W, IP67 submersible (SealDrive™), stroke/force approx. 165 mm / 800 N; certified failure rate <0.025%.
• Transformer: model YZ21008-01A, IP65, housed in pole (outputs for motor and LED circuits).
• Perimeter LED: IP67, 2 × 2.7 W/m, selectable 3000K / 6000K, CRI 90; integrated in profile and included.
• Remote control: 868.35 MHz, open-field range >200 m (reduced by obstacles in built environments).
• App: Tuya Smart (Wi‑Fi + Bluetooth); compatible with Google Home and Alexa; HomeKit via bridge (optional).
• Solar rain sensor: model YZ61001-01SR-FSK (solar power, ~600 mAh battery, autonomy approx. 6 months without sun), wireless range ~80 m, all‑metal anti‑corrosion housing.
• Poles: double-channel 120 × 120 × 2 mm.
• Beams: 160 × 95 × 1.7 mm with integrated gutter.
• Louvre profile: 160 × 33 × 1.4 mm (max length 3 m double-layer).
• Minimum footprint: 3038 × 3038 mm (3×3 m) — 9 m² (4 poles); Maximum footprint: 4038 × 5858 mm (4×6 m) — 24 m² (6 poles).
• Pole height: 2,515 mm.
• Base plates: 8 mm steel base plates (4 plates for smaller sizes, 6 plates for 3×6 & 4×6 formats) — fixings depend on substrate (not included).
• Included in the price/package: complete aluminium structure (poles, beams, louvres), pre‑installed IP67 motor(s), integrated bi‑colour LED, solar rain sensor, 868 MHz remote control, Tuya app access, transformer pre‑installed, M8 GripBolt™ hardware and complete illustrated installation kit.
• Warranty: 10 years on structure; 3 years on motor.
